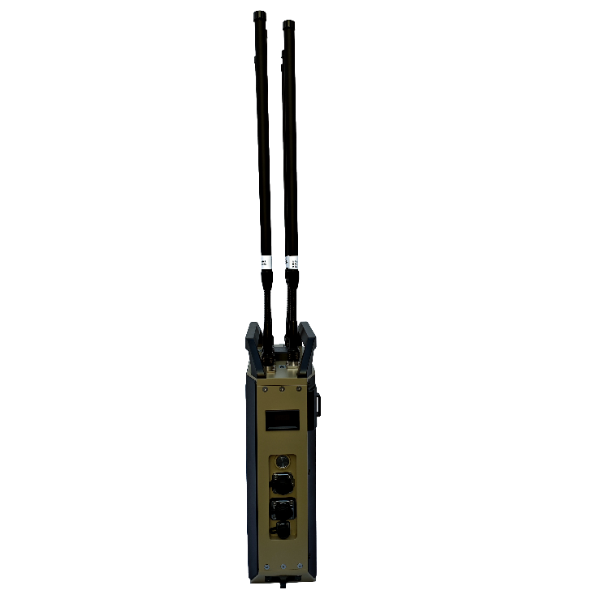

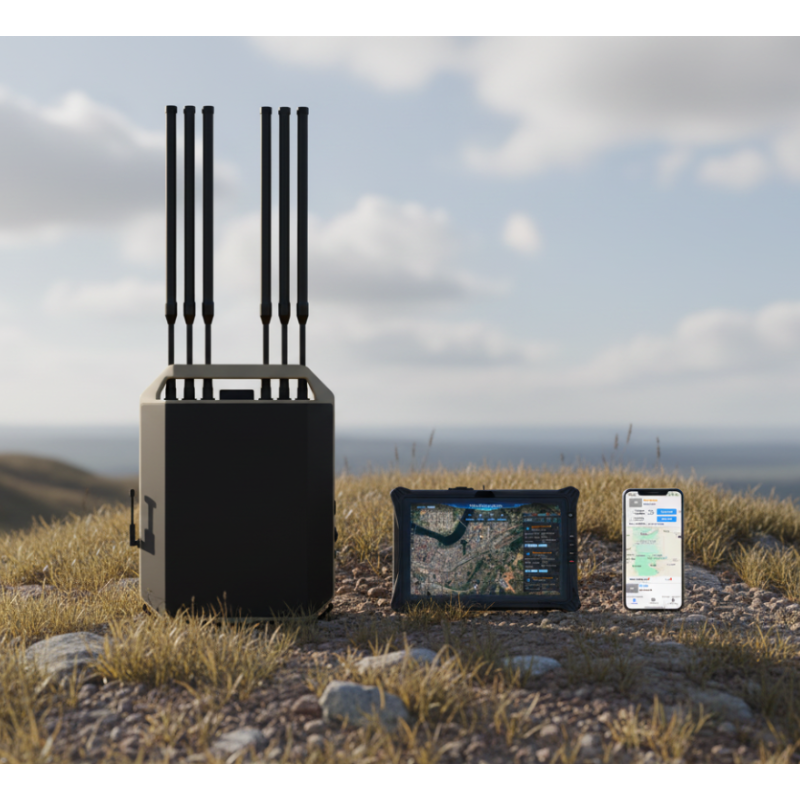

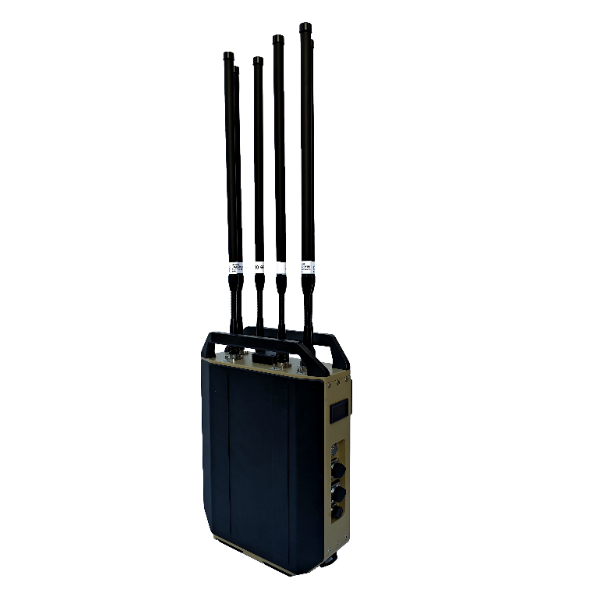

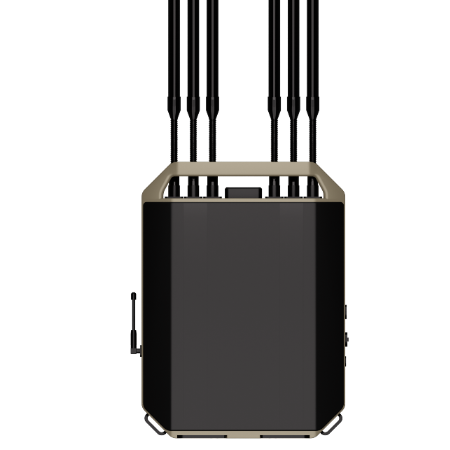

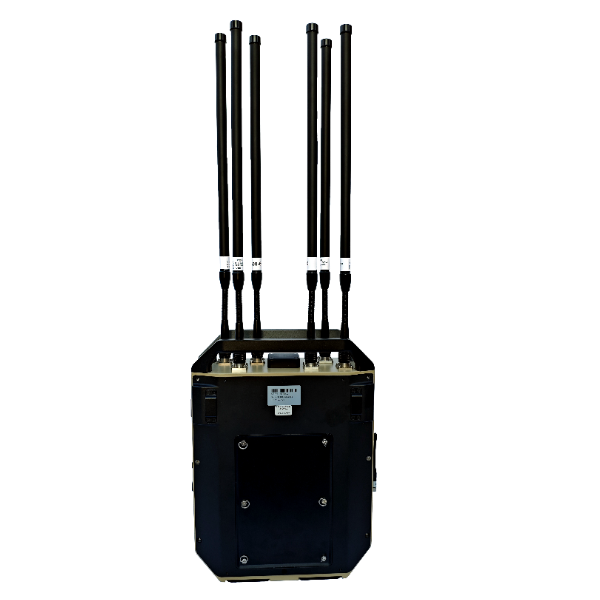

SDFR600-A All-Scenario Drone Detection and Positioning Device
SDFR600-A All-Scenario Drone Detection and Positioning Device
Device Technical Parameters
|
Number |
Name |
Specifications |
|
1 |
Identification types |
Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones |
|
2 |
Frequency range |
Supports customizable scanning from 70 MHz to 6.2 GHz. |
|
3 |
Positioning models |
Full range of DJI drones, selected models from Autel |
|
4 |
Detection range |
≥10 km for mainstream drones, ≥2 km for FPV drones |
|
5 |
DID/RID positioning range |
DID≥10km，RID≥3km |
|
6 |
Positioning accuracy |
≤10 m |
|
7 |
FPV video signal detection |
Supports analog video transmission detection within the 500 MHz – 6 GHz band (customizable) |
|
8 |
Detection radius |
≥1.5 km (line-of-sight, clean electromagnetic environment) |
|
9 |
Video capture distance |
≥1.5 km (line-of-sight, clean electromagnetic environment) |
|
10 |
Detection response time |
≤3 s (8 frequency bands); ≤5 s (12 frequency bands) |
|
11 |
Power supply |
Lithium battery powered |
|
12 |
Battery life |
≥6 hours (main unit) |
|
13 |
Device weight |
≤8 kg |
|
14 |
Device dimensions |
343 mm × 230 mm × 86 mm (L × W × H) |
3. Device Features and Functions
Full-Band Detection: 70 MHz to 6.2 GHz wide-spectrum scanning
Analytical Positioning: Monitors multidimensional data such as drone location (latitude, longitude, azimuth), speed, flight path, and controller position (latitude, longitude, azimuth)
FPV Video Capture: Captures all analog video transmissions, enabling first-person view analysis of FPV intrusions and real-time dynamics
Enhanced Detection Capability: Detection and decryption range up to 12 km
Multi-Terminal Alarm Push: Alarm information pushed to multiple mobile terminals for team collaboration and efficient response

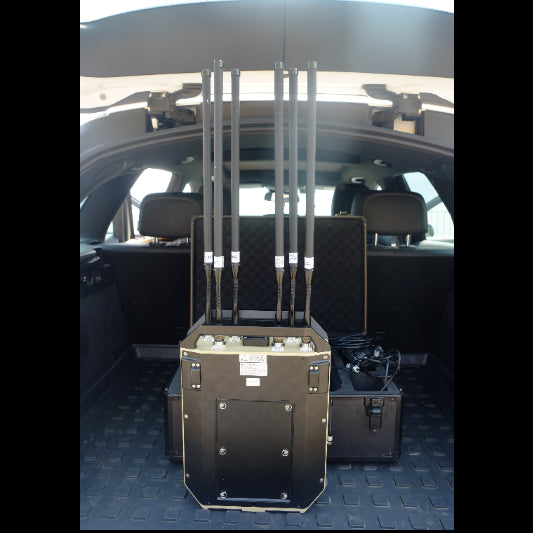

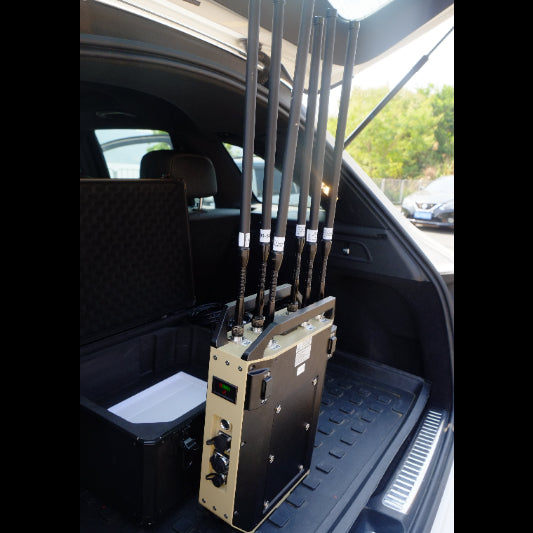

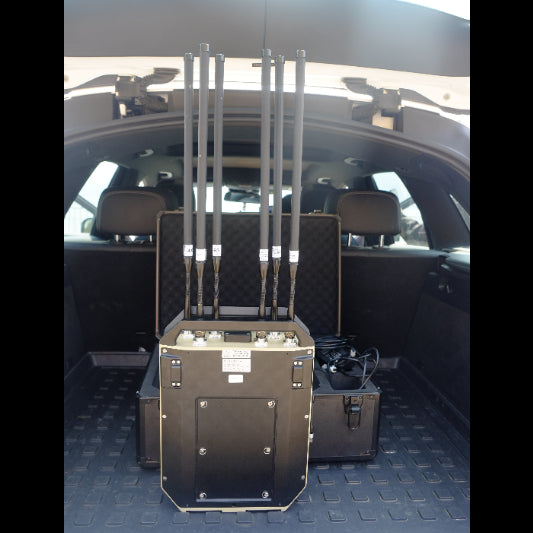

Multi-Scenario Deployment: Supports backpack-mounted, fixed-site, and vehicle-mounted operations
|
Product name |
Product picture |
Number |
Size (mm) |
Weight (kg) |
|
|
1 |
Main device |
|
1 |
400mm * 165mm * 500mm |
7.25 |
|
2 |
Antenna |
/ |
6 |
Diameter 16 mm * height 400mm |
0.9 |
|
3 |
Charger |
|
1 |
/ |
0.25 |
|
4 |
Backpack |
|
1 |
337mm * 475mm |
0.65 |
|
Aviation case |
|
1 |
550mm*400mm*240mm |
3.8 |
