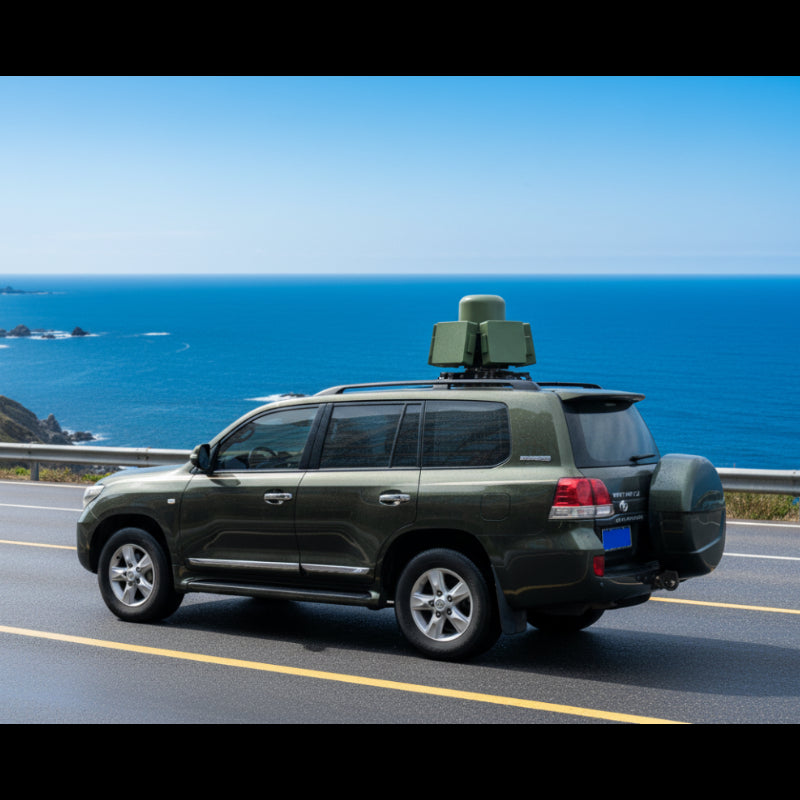

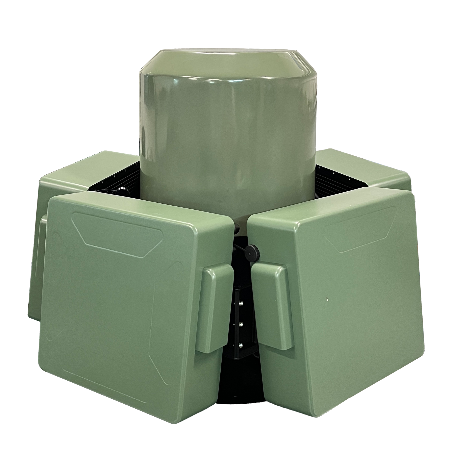

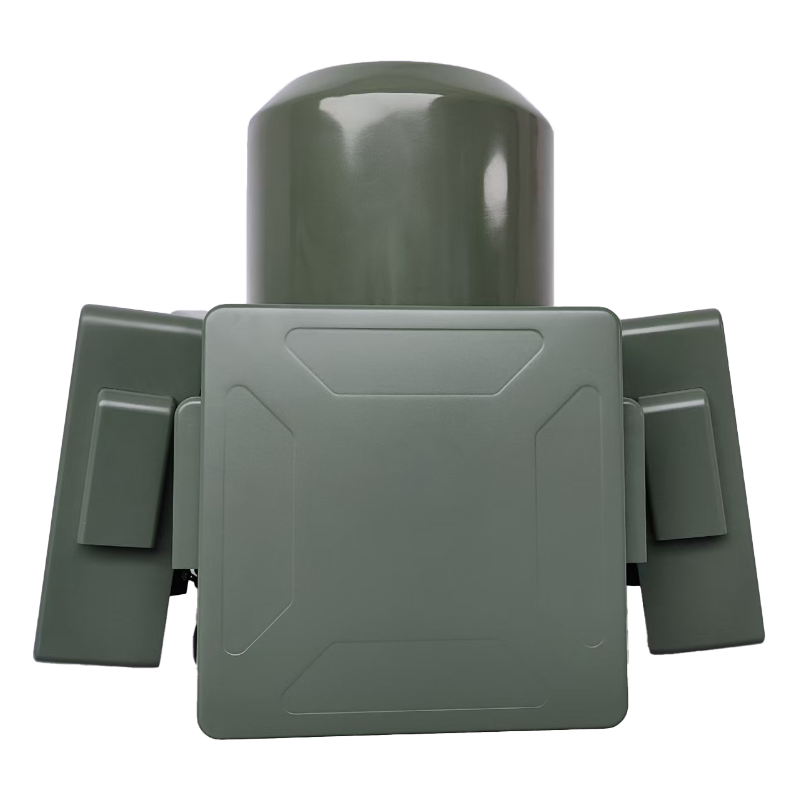

Vehicle-Mounted Drone Detection and Defense
Vehicle-Mounted Drone Detection and Defense
Equipment Usage
The vehicle-mounted integrated drone detection and countermeasure system is a comprehensive security solution that combines drone detection, identification, and countermeasure capabilities. It is specifically designed to address the increasingly complex threats posed by drones. The system can detect drone activity in the surrounding airspace in real-time, quickly identify the type and flight path of the drone, and effectively suppress illegal intrusion or malicious activities through multiple countermeasures, ensuring the security of critical areas or events.
Technical Specifications
|
No. |
Name |
Performance Indicators. |
|
1 |
Detection Mode |
Passive detection, does not actively emit radio signals in detection mode |
|
2 |
Detection Frequency |
300MHz~6GHz. |
|
3 |
Detection Angle |
Horizontal 0°~360°, vertical -90°~90° |
|
4 |
Detection Altitude |
0～1200m |
|
5 |
Detection Radius |
5km（subject to variation depending on environment and drone model） |
|
6 |
FPV analog video transmission signal detection |
500MHz~6GHz scan and display |
|
7 |
FPV analog video transmission signal detection distance |
≥1.5km (support viewing real-time analog video) |
|
8 |
Detection Time |
≤5s |
|
9 |
Detection Power Consumption |
≤100W |
|
10 |
Jamming Distance |
3km（subject to variation depending on environment and drone model） |
|
11 |
Jamming Angle Selection |
Allows independent on/off control for multiple angles |
|
12 |
Jamming Range |
Horizontal: 360°; vertical: -90° to +90°. |
|
13 |
Jamming Frequency Bands |
900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz |
|
14 |
Operating Frequency |
Channel 1: (840±15) MHz to (930±15) MHz Channel 2: (1535±15) MHz to (1635±15) MHz Channel 3: (2380±15) MHz to (2520±15) MHz Channel 4: (5130±15) MHz to (5370±15) MHz Channel 5: (5725±15) MHz to (5885±15) MHz Channel 6: (1080±15) MHz to (1200±15) MHz |
|
15 |
Transmission Power |
Channel 1: (47±1) dBm Channel 2: (44±1) dBm Channel 3: (47±1) dBm Channel 4: (44±1) dBm Channel 5: (47±1) dBm Channel 6: (44±1) dBm |
|
16 |
Jamming Response Time |
≤3s |
|
17 |
Suppression Distance Ratio |
The maximum distance ratio between the system and the drone versus the drone and its controller should be no less than 15:1 in the absence of significant electromagnetic interference |
|
18 |
Total Power Consumption |
≤2300W |
|
19 |
Mobile Power Supply |
Mobile power supply; in full-frequency transmission mode, continuous operation for ≥30 minutes |
|
20 |
Power Supply Mode |
Supports 220V AC power or mobile power supply |
|
21 |
High-Speed Operation |
Capable of detecting and countering drones while in high-speed motion |
|
22 |
Map Positioning |
Equipped with an electronic map that can display the system’s geographic location in real-time |
|
23 |
Alarm Function |
Provides alarm notifications via information, sound, and light upon drone detection |
|
24 |
Operating Temperature |
（-20~+60）±2℃ |
|
25 |
Storage Temperature |
（-60~+85）±2℃ |
|
26 |
Equipment Weight |
64.25kg |
